Short-Path Distillation Units 0.05 m² – 0.40 m²

H.S. Martin India offers high-performance short-path distillation units designed for the gentle and efficient separation of volatile components and high-boiling mixtures. The short residence time and controlled evaporation conditions help minimize thermal degradation, making these systems particularly suitable for heat-sensitive materials.

0.05 – 0.40 m² Evaporation surface area
Manual / Continuous Feeding options
Magnetic Coupling Stirring assembly
Enquiry

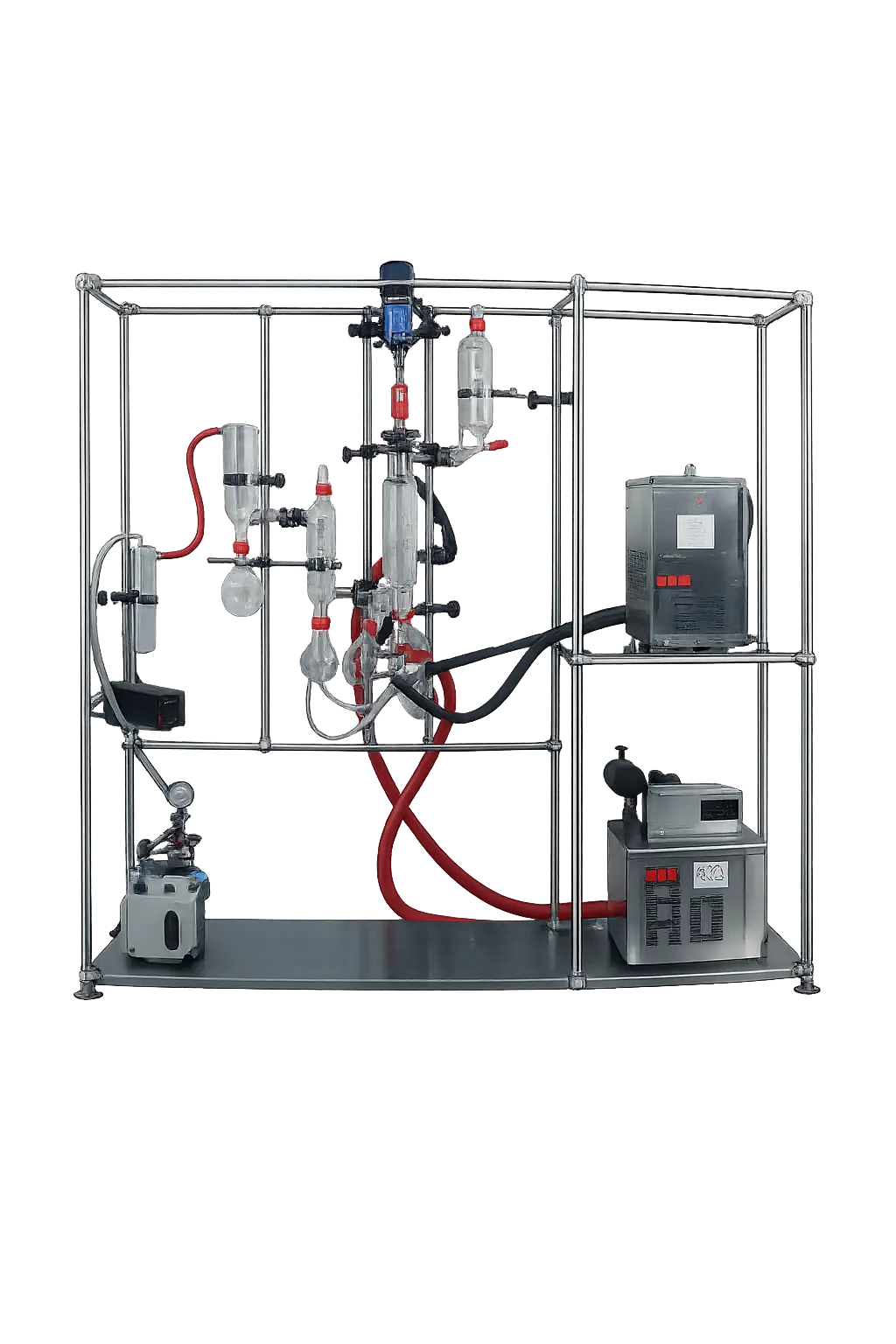

Short-Path Distillation Unit

Key Features

  • Efficient short-path separation — Ideal for a wide range of volatile mixtures and high-boiling materials
  • Gentle evaporation — Designed to minimize thermal exposure and reduce thermal degradation
  • Laboratory to pilot-scale applications — Suitable for research, process development, pilot studies, small-scale production, and troubleshooting
  • Evaporation surface areas — Available from 0.05 m² to 0.40 m², including 0.05, 0.10, 0.15, 0.25, and 0.40 m²
  • Flexible feeding options — Manual feeding or continuous feeding using peristaltic or geared pumps
  • Discharge options — Manual discharge or geared-pump discharge for continuous operation
  • Vacuum systems — Complete systems can be supplied with suitable vacuum pumps and diffusion pumps
  • Stirring assembly — Magnetic coupling with a choice of rotor materials and configurations to suit specific process requirements
  • Custom configurations — Equipment and accessories can be configured according to specific customer and application requirements

Customized Process Solutions

H.S. Martin India can supply complete short-path distillation systems, including feeding, discharge, vacuum, and stirring arrangements, configured to meet specific process requirements and operating conditions.

Enquiry

Technical Specification

Separation
Efficient short-path separation of volatile mixtures and high-boiling materials
Evaporation
Gentle evaporation with minimal thermal exposure and reduced thermal degradation
Applications
Laboratory research / Process development / Pilot studies / Small-scale production / Troubleshooting
Evaporation Surface Area
0.05 m² – 0.40 m² (0.05 / 0.10 / 0.15 / 0.25 / 0.40 m²)
Feeding Options
Manual / Continuous with peristaltic or geared pumps
Discharge Options
Manual / Geared-pump discharge for continuous operation
Vacuum System
Suitable vacuum pumps and diffusion pumps available
Stirring Assembly
Magnetic coupling with various rotor materials and configurations
System Configuration
Complete systems with feeding, discharge, vacuum, and stirring arrangements
Customization
Equipment and accessories configurable according to customer and application requirements
