Benchtop Batch Reactors 100 mL – 2,000 mL

H.S. Martin India offers precision-engineered benchtop batch reactors designed for laboratory, research, and process development applications. Available in standard and customized configurations, our reactors provide flexibility for a wide range of reaction conditions and process requirements.

100 mL – 2,000 mL Vessel volume

10 mbar – 0.5 bar Pressure range

−80°C to +200°C Operating temperature

Enquiry

Key Features

Jacketed and vacuum-jacketed vessels — Double-wall and triple-wall configurations from 100 mL to 2,000 mL
Zero-hold-up bottom valves — 15 mm and 25 mm flush-bottom valve options
Custom vessel designs — Available with or without baffles to suit specific process requirements
Pressure range — Suitable for applications from 10 mbar to 0.5 bar
Operating temperature options — −40°C to +180°C and −80°C to +200°C
Top flange sizes — DN 60 for 100–500 mL; DN 100 and DN 120 for 500 mL, 1,000 mL, and 2,000 mL configurations
Lid options — Borosilicate glass or PTFE lids
Stirring options — Universal stirrer guide or magnetic coupling
Stirrer designs — Various stirrer configurations, including PBT, Anchor, Retreat Curve, CBRT, and other designs
Custom accessories — Additional glassware and accessories available according to specific application requirements
Combo reactor systems — Configurations available from 50–500 mL and 1,000–5,000 mL in a single setup

Customized to Your Process

Our benchtop batch reactors can be customized to suit your reaction volume, operating temperature, pressure, stirring, vessel configuration, and specific process requirements, providing reliable and flexible solutions for laboratory and process development applications.

Enquiry

Technical Specification

Vessel Volume: 100 mL – 2,000 mL
Wall Construction: Jacketed (double wall) / Vacuum-jacketed (triple wall)
Bottom Valve: 15 mm / 25 mm flush-bottom, zero hold-up volume
Vessel Design: Custom designs with or without baffles
Pressure Range: 10 mbar – 0.5 bar
Temperature Range: −40°C to +180°C / −80°C to +200°C
Top Flange Size: DN 60 (100–500 mL) / DN 100 & DN 120 (500–2,000 mL configurations)
Lid Options: Borosilicate glass / PTFE
Stirring Options: Universal stirrer guide / Magnetic coupling
Stirrer Designs: PBT / Anchor / Retreat Curve / CBRT / Other custom designs
Combo Reactor Systems: 50–500 mL / 1,000–5,000 mL in a single setup
Accessories: Additional glassware and accessories available as required

Benchtop Batch Reactors 100 mL – 2,000 mL

Key Features

Customized to Your Process

Technical Specification

Our Product Range

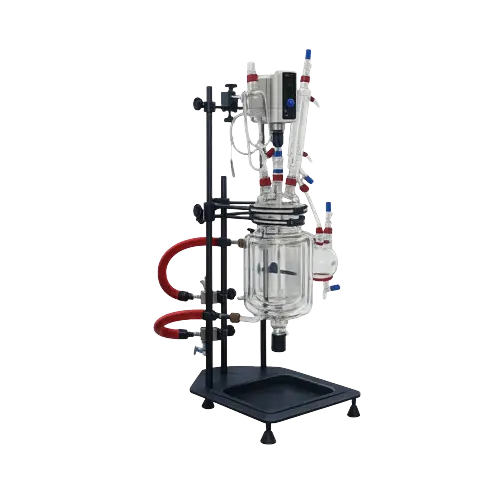

Batch Reactors 3000 ml to 5000 ml
